BlueSolar laddningskontrollerBlueSolar 12/24-PWM Three models: 5A, 10A or 20A at 12V or 24V * - Low cost PWM controller - Internal temperature sensor - Three stage battery charging (bulk, absorption, float) - Protected against over current - Protected against short circuit - Protected against reverse polarity connection of the solar panels and/or battery - With low voltage load disconnect output - Optional remote display (20A model only) BlueSolar DUO 12/24-20 20A at 12V or 24V * - PWM controller - Charges two separate batteries. E.g. the starter battery and the service battery of a boat or mobile home - Programmable charge current ratio (standard setting: equal current to both batteries) - Charge voltage settings for three battery types (Gel, AGM and Flooded) - Internal temperature sensor and optional remote temperature sensor - Protected against over current - Protected against short circuit - Protected against reverse polarity connection of the solar panels and/or battery. |
Datasheet
Brochure
Press release
Installation and user manual
High quality photo -
High quality photo - All Solar Products (compilation photo)
(jpg, updated 2011-05-02, 7315Kb) -

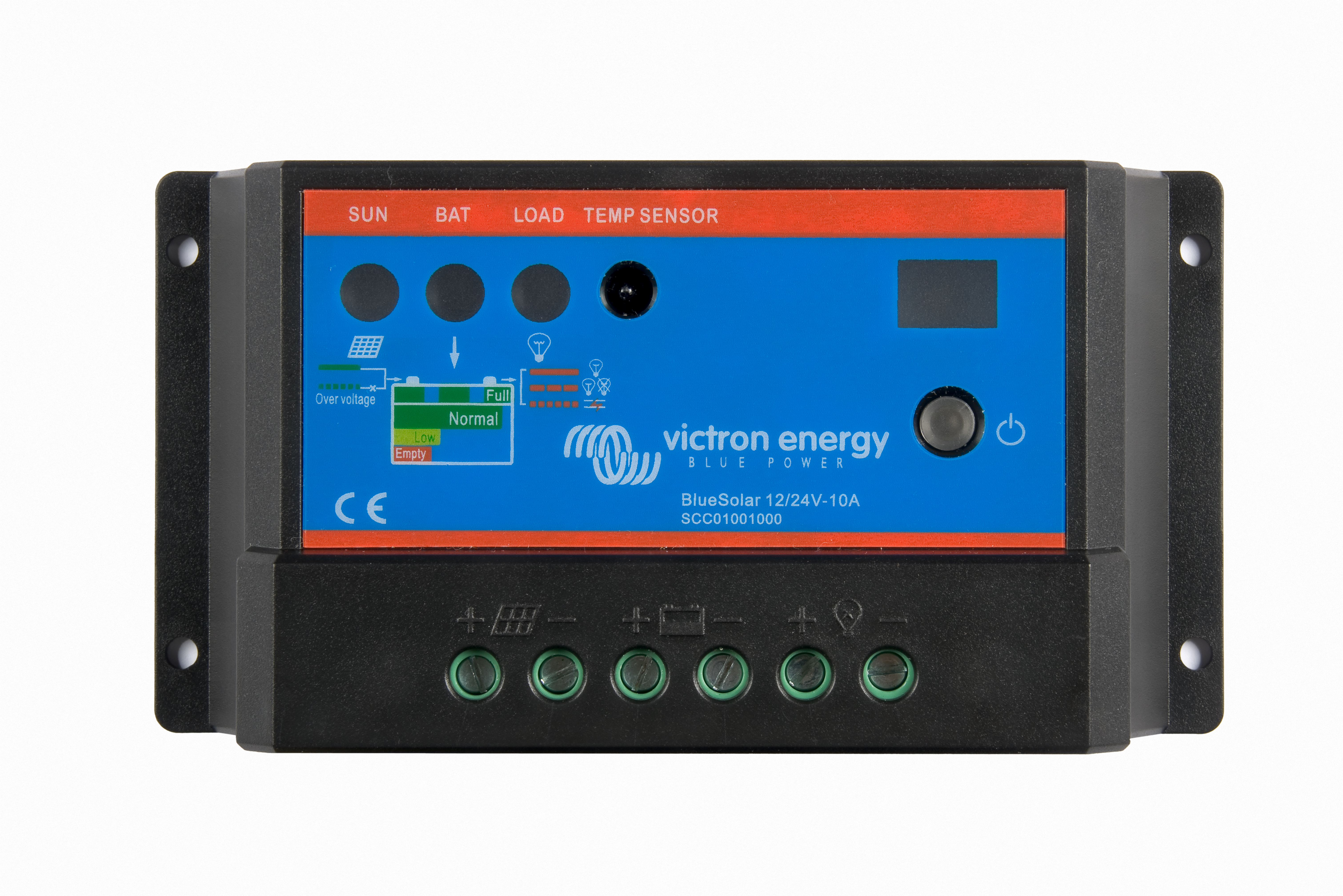

High quality photo - Blue Solar 12-24V 10A (front)
(jpg, updated 2010-02-25, 11433Kb) -

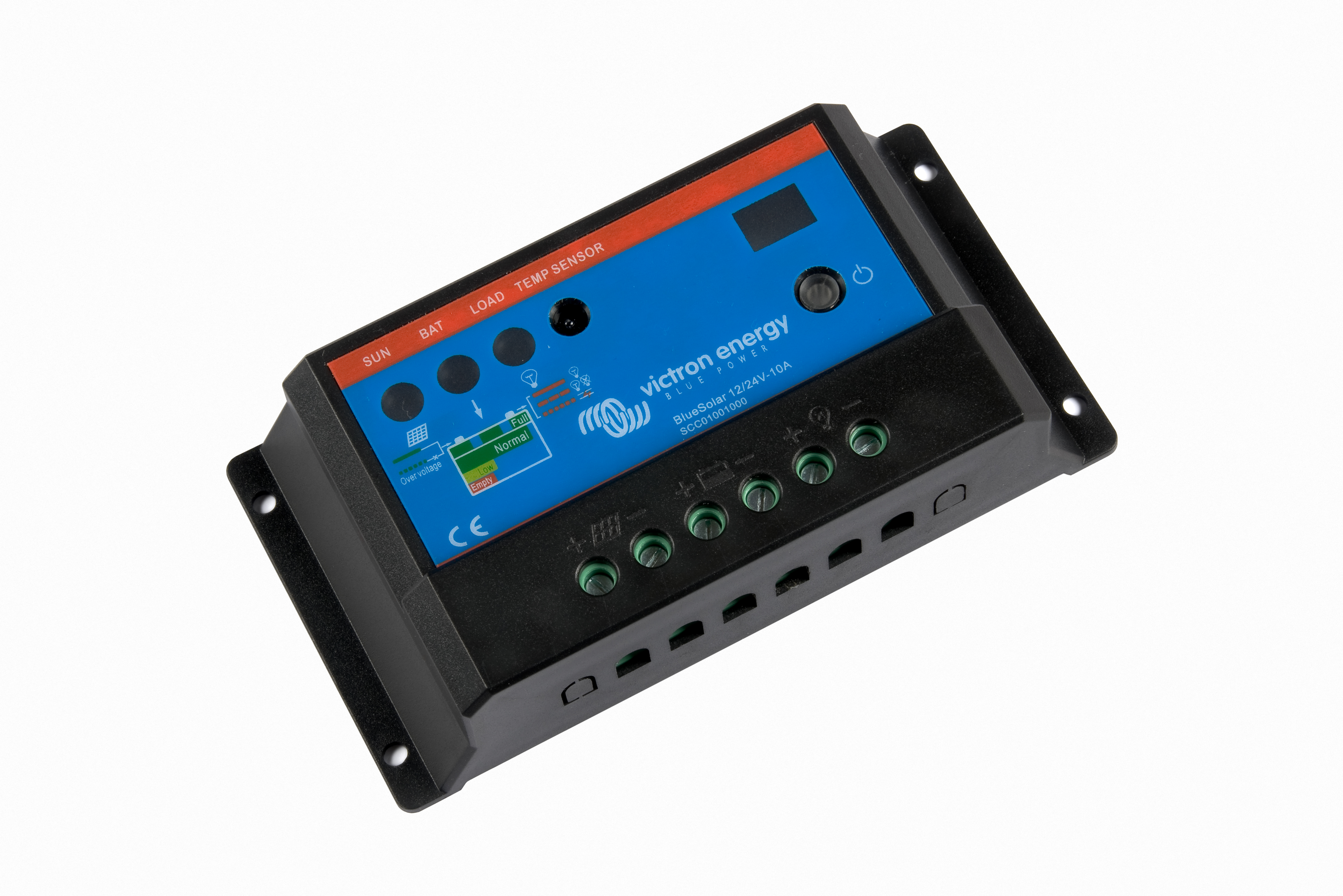

High quality photo - Blue Solar 12-24V 10A (right)
(jpg, updated 2010-02-25, 10512Kb) -

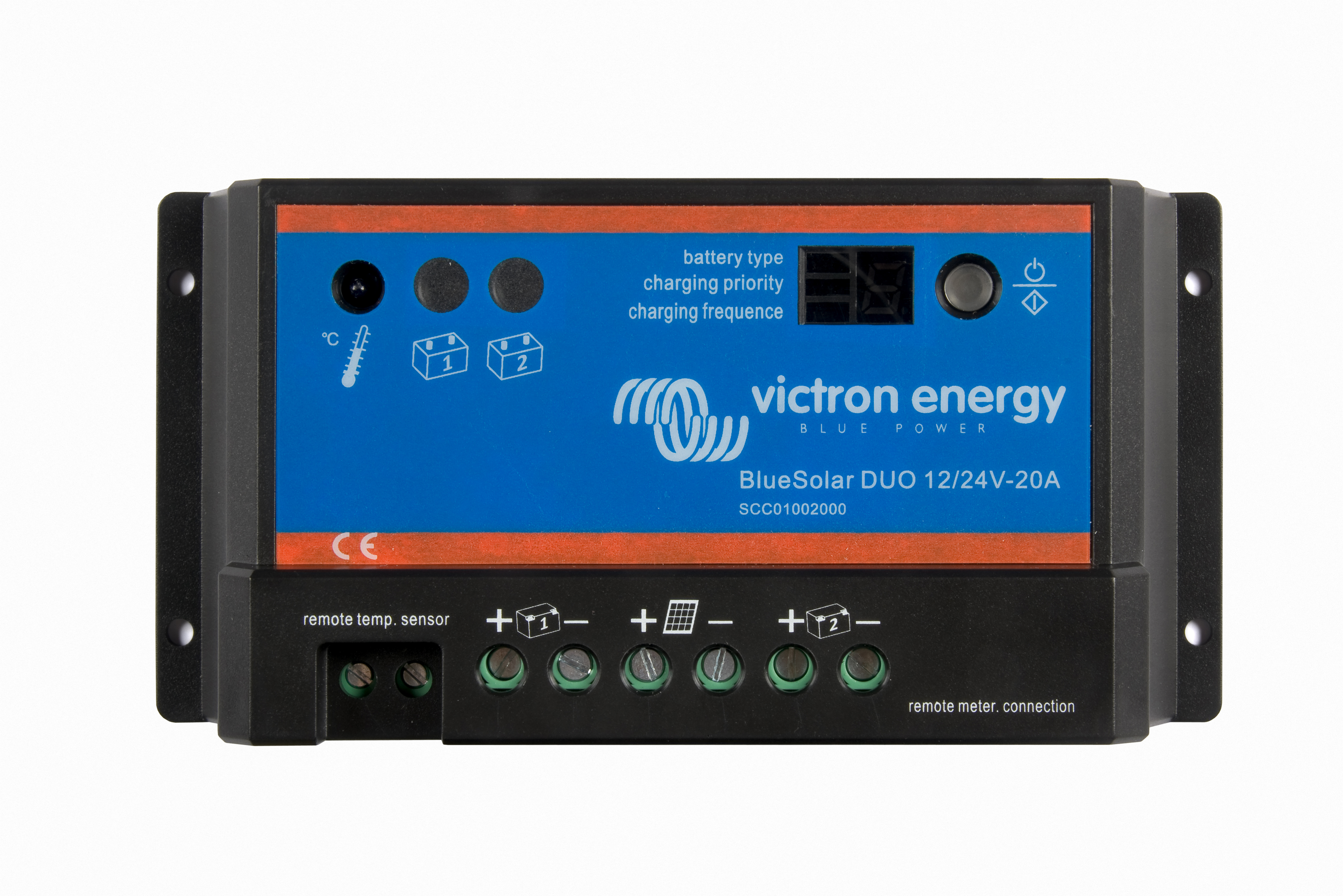

High quality photo - Blue Solar DUO 12-24V 20A (front)
(jpg, updated 2010-02-25, 10356Kb) -

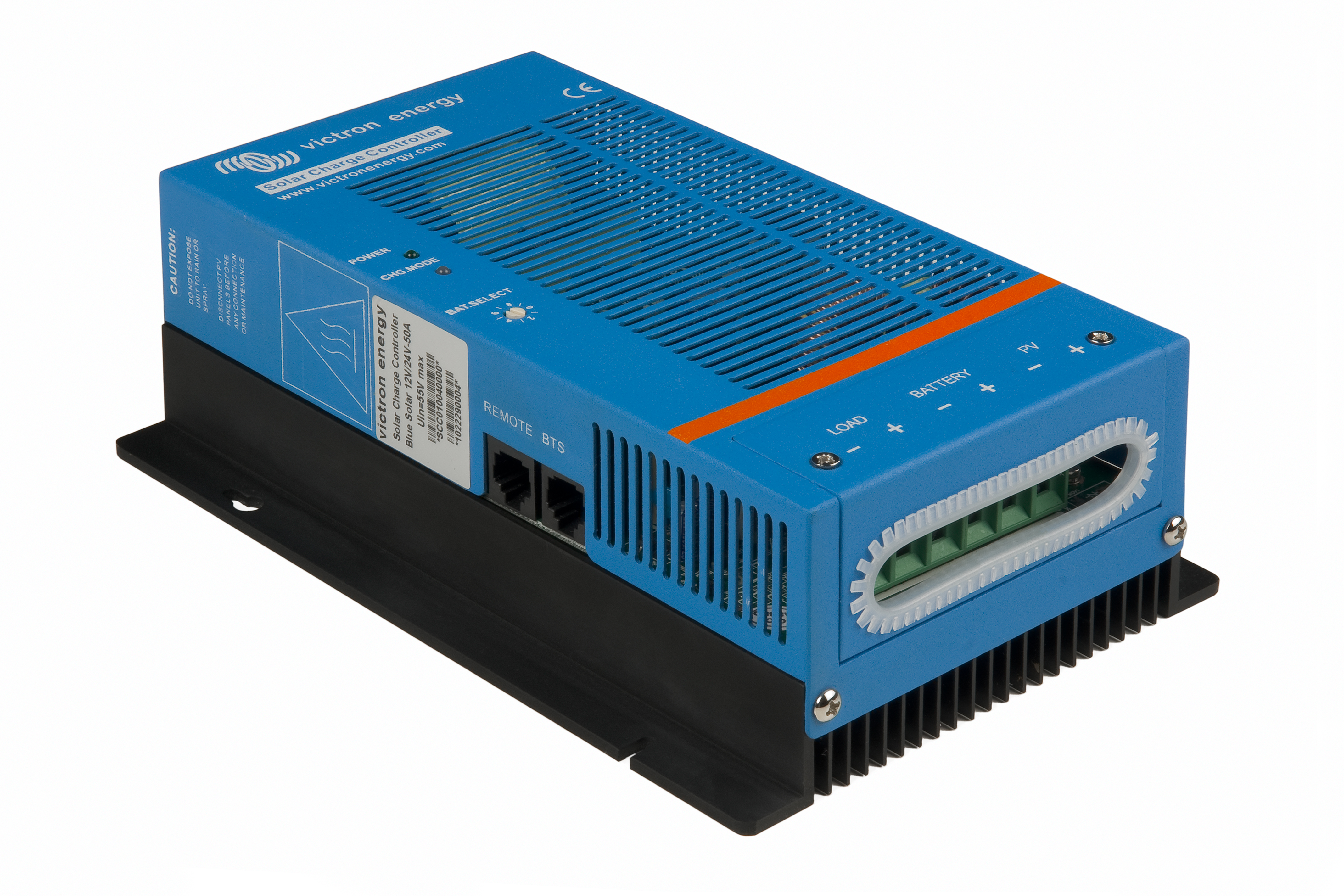

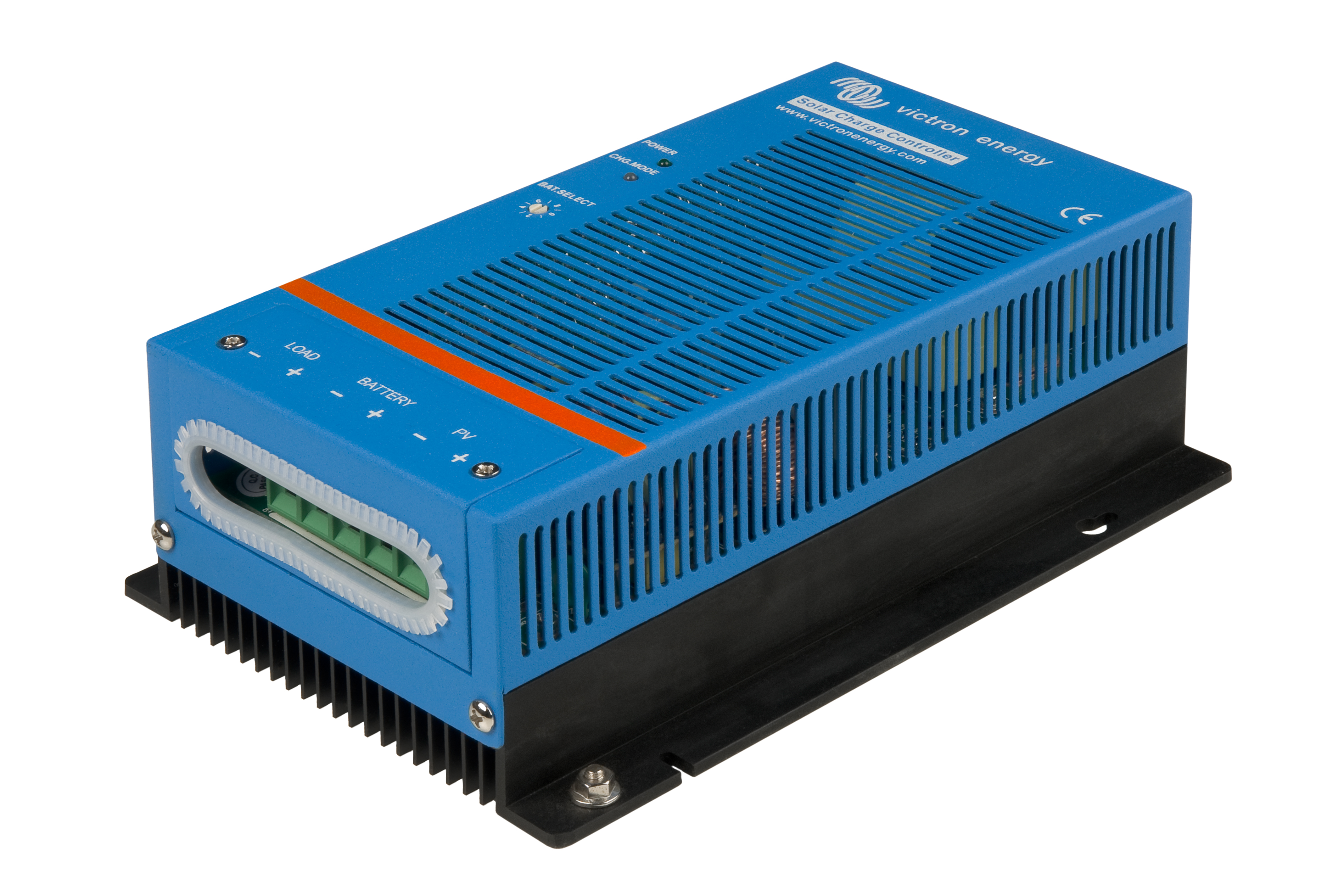

High quality photo - BlueSolar MPPT Charge Controller
(jpg, updated 2010-04-12, 6830Kb) -

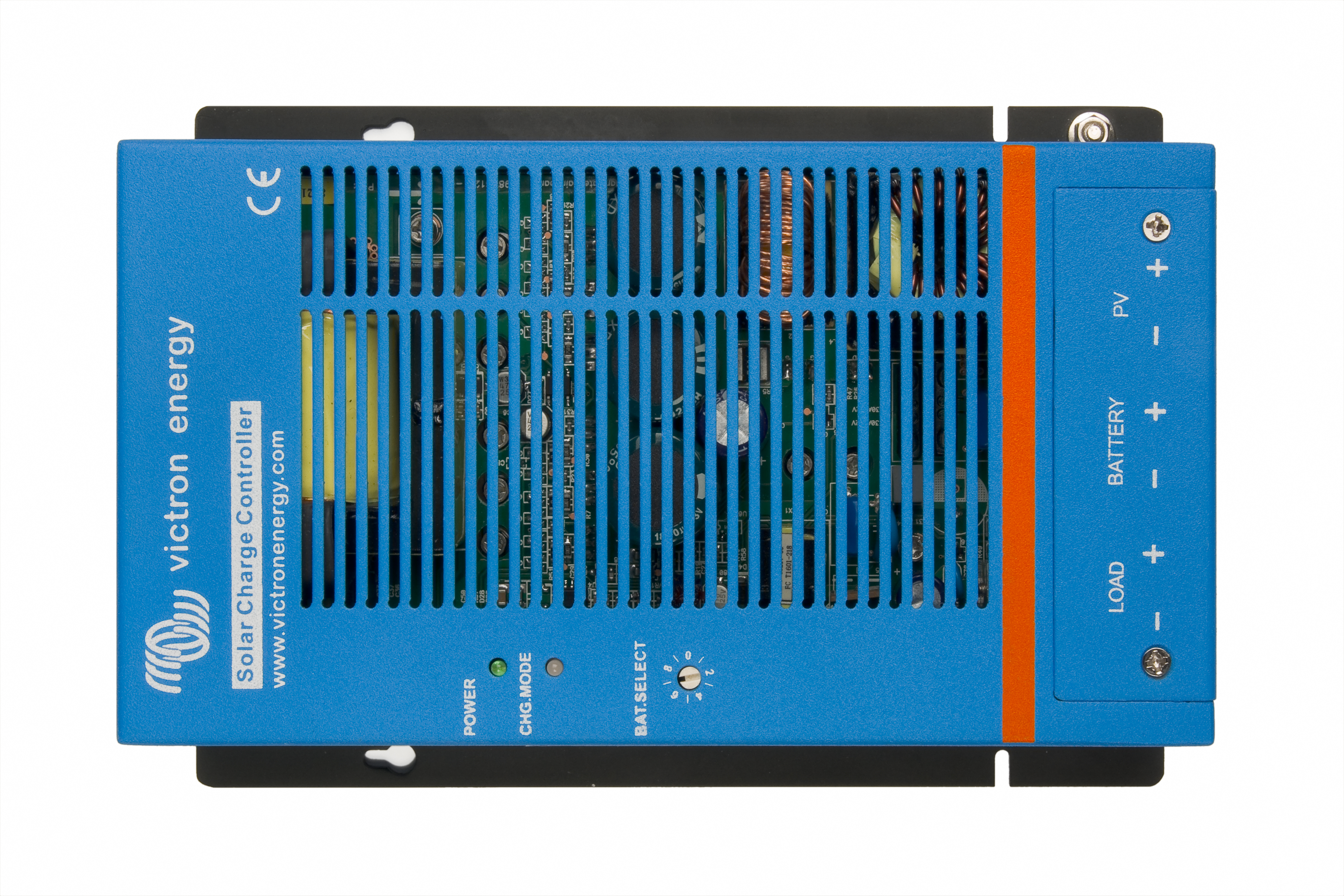

High quality photo - BlueSolar MPPT Charge Controller (back)
(jpg, updated 2010-04-12, 9484Kb) -

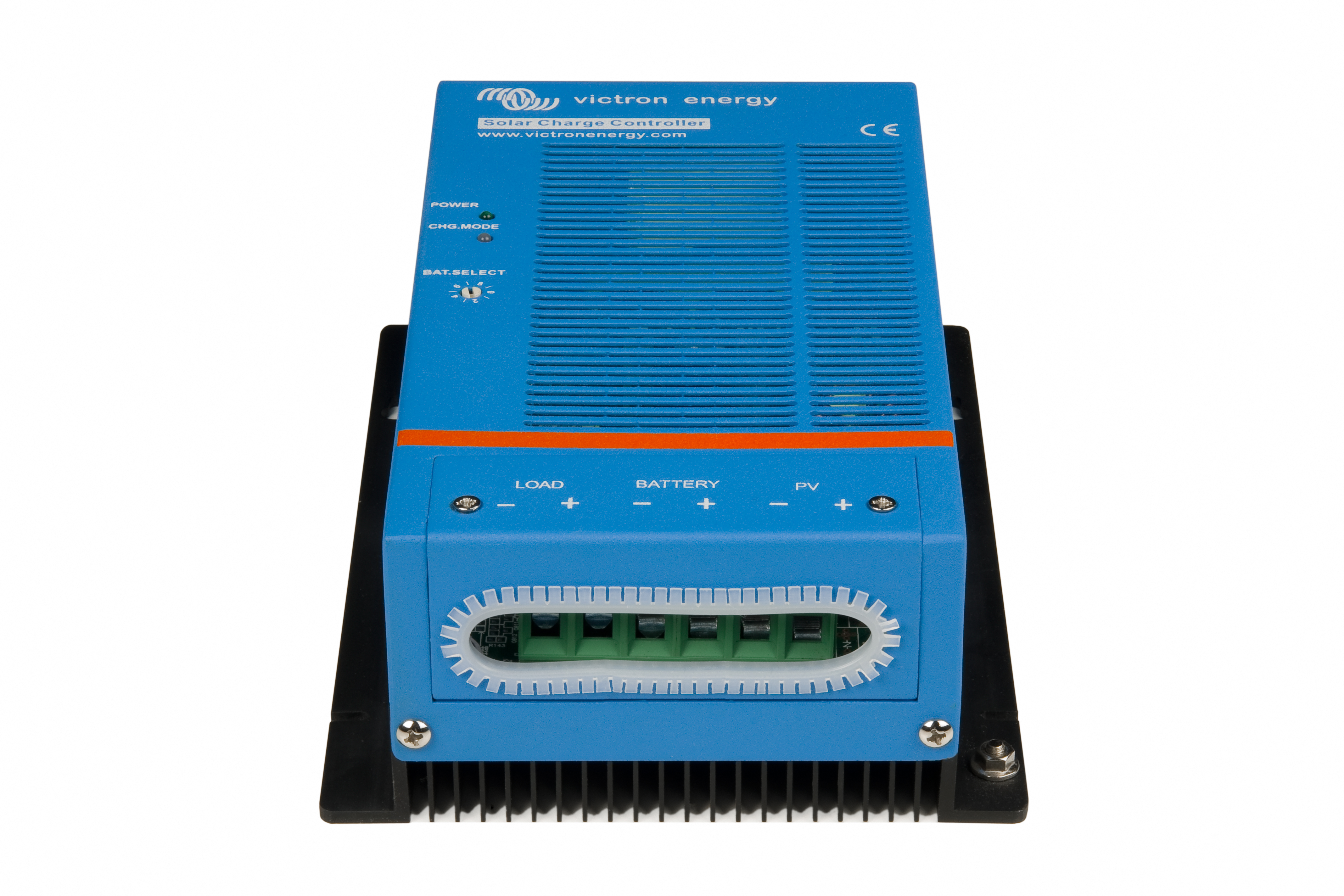

High quality photo - BlueSolar MPPT Charge Controller (front)
(jpg, updated 2010-04-12, 5890Kb) -
High quality photo - BlueSolar MPPT Charge Controller right
(jpg, updated 2010-04-12, 4687Kb) -

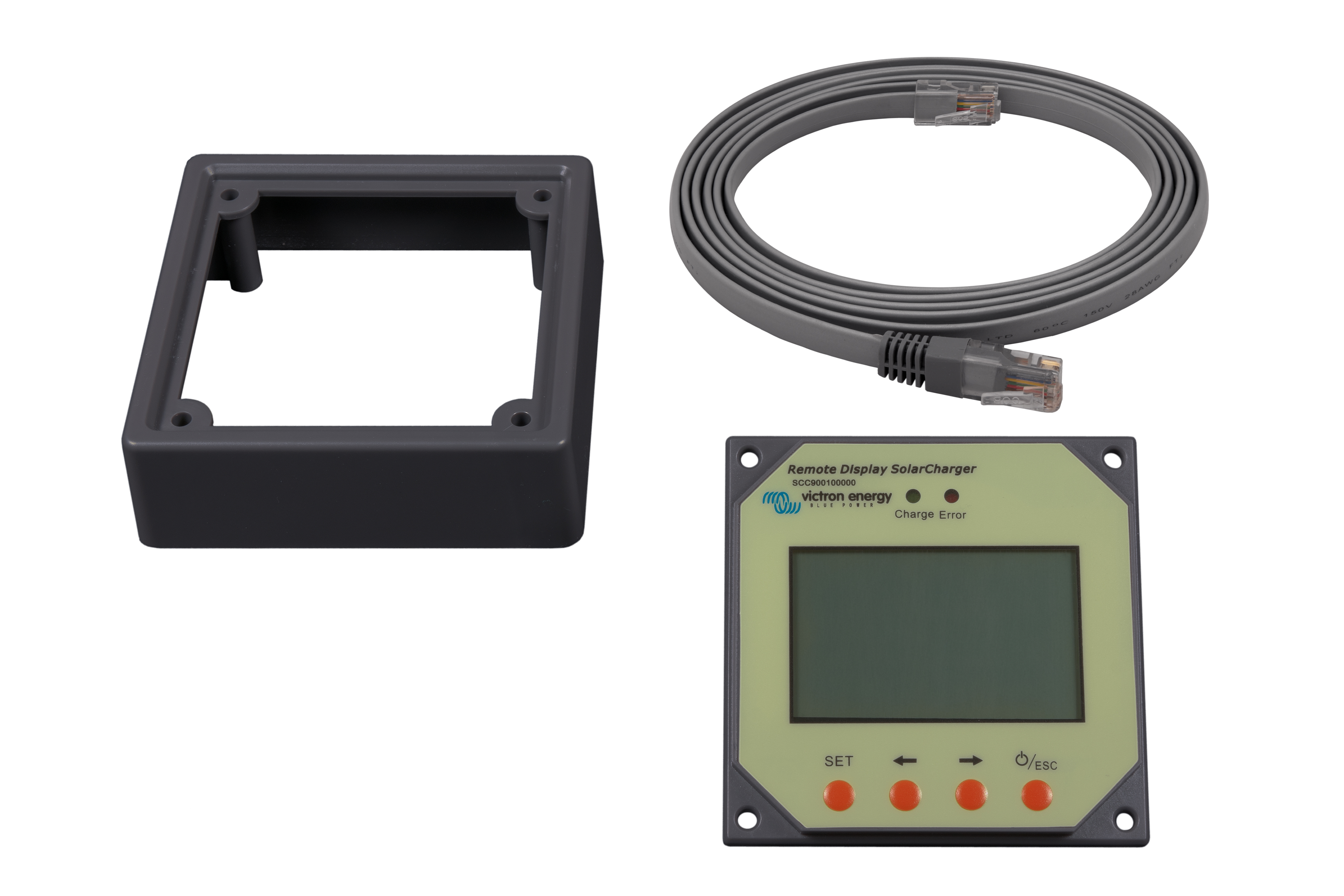

High quality photo - Remote panel for BlueSolar 12/24V-20A (compilation)
(jpg, updated 2012-01-31, 2338Kb) -

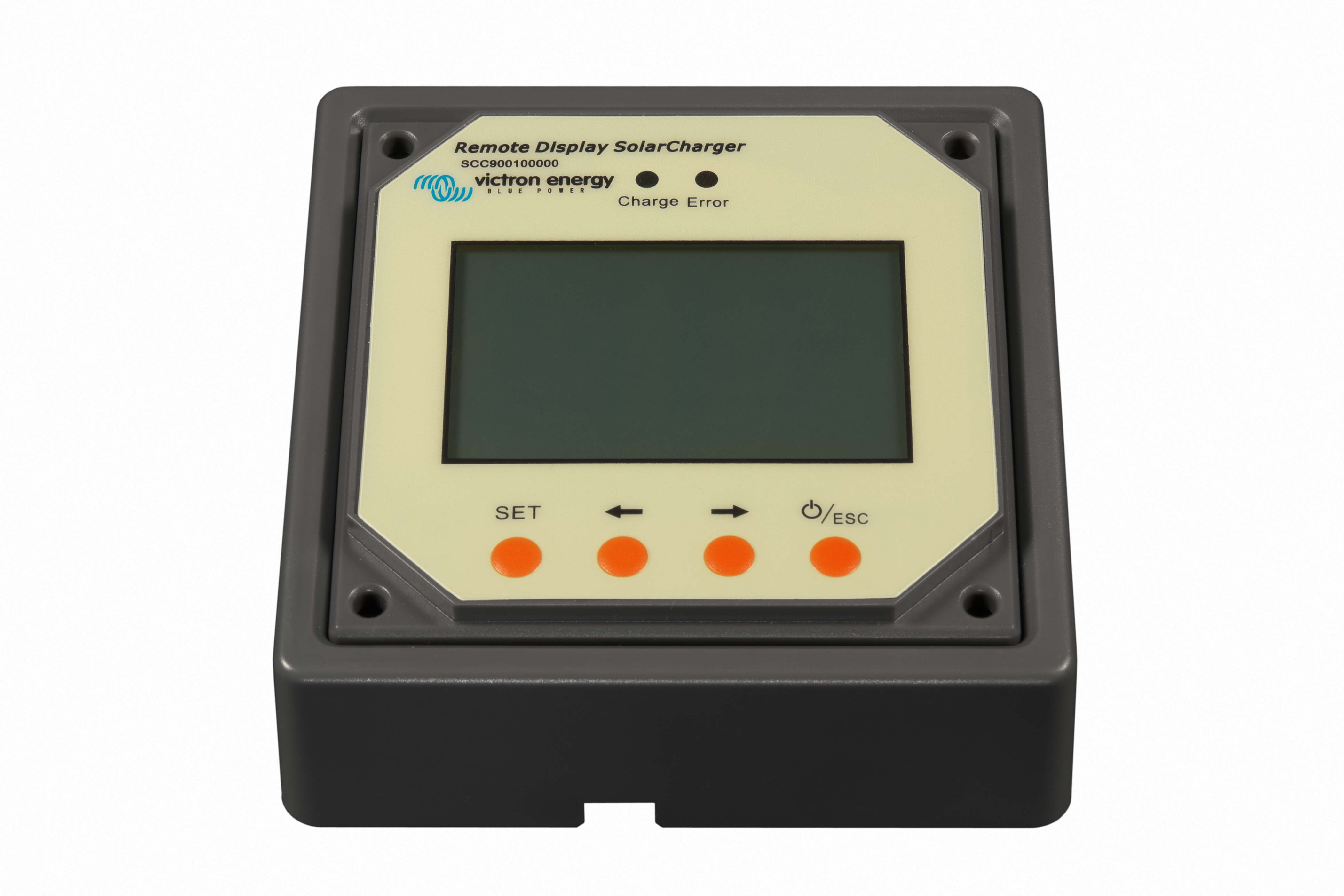

High quality photo -Remote panel for BlueSolar 12/24V-20A (front)
(jpg, updated 2012-01-31, 4201Kb) -

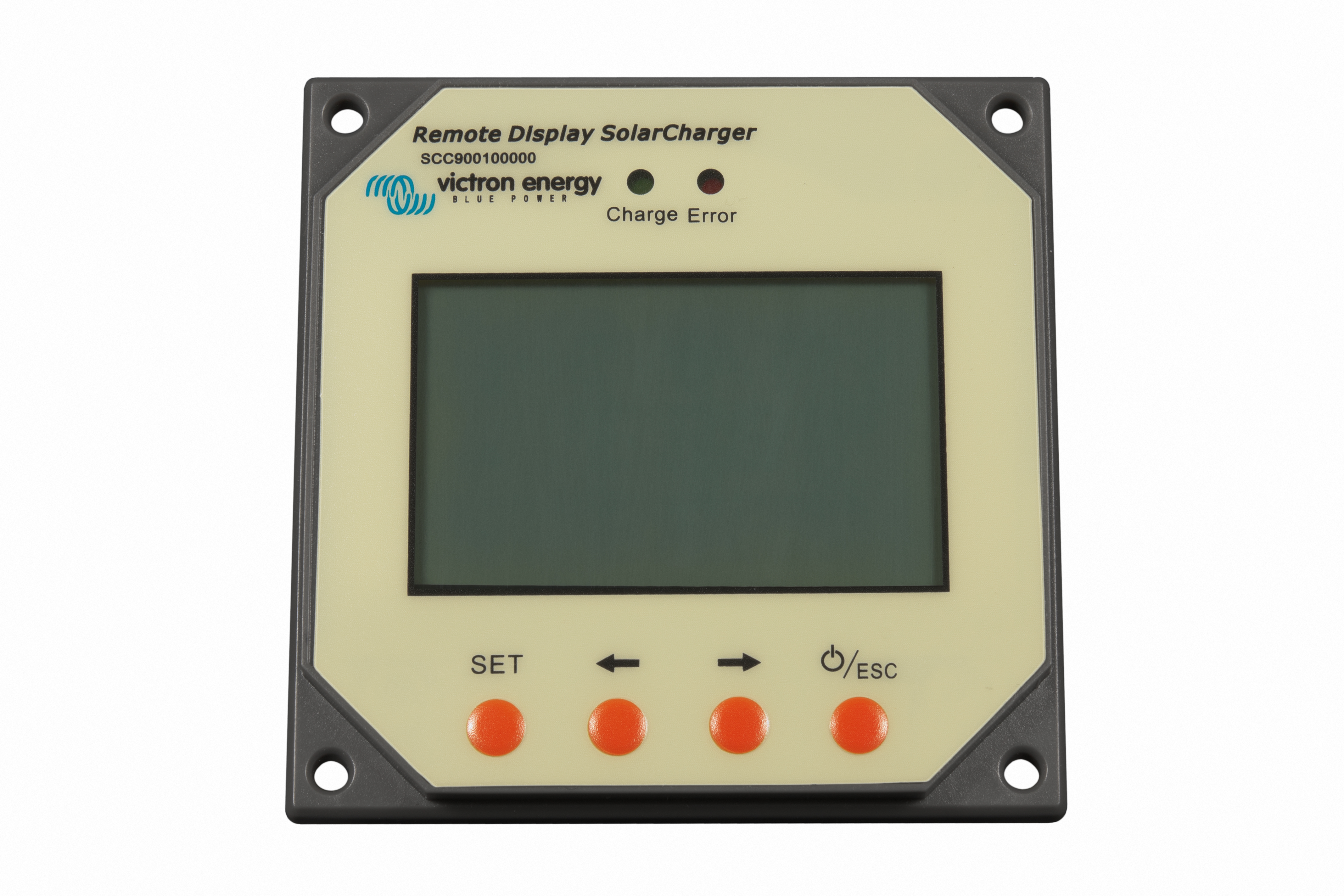

High quality photo -Remote panel for BlueSolar 12/24V-20A (top)
(jpg, updated 2012-01-31, 4597Kb)
